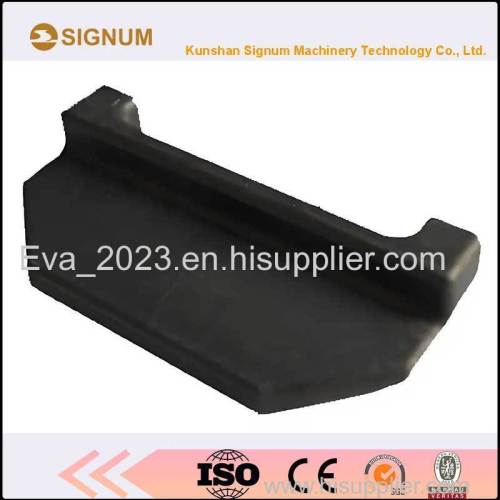

Rail Plastic Insulator/Railway Insulator/Railroad Liner

Price:	0.25 USD
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: bags/pallet/tray

Brand Name: SM

Production Capacity: 5000000 ps/month

Delivery Date: 30 days

Nylon Insulators: plastic Insulators

Signum Machinery Technology Co., Ltd. offers Railway insulators for E-type,SKL, Nabla rail fastening system.

Rail Plastic Insulator,Railway Guide Plate,Nylon 66 insulators for railway fastening

Kunshan Signum Machinery Technology Co., Ltd. specialises in manufacturing rail plastic insulators according to our customer's specific requirements.This includes material, color and shape.

Rail insulator is an essential part for railway fastening. It is installed between rail clip and steel rail, with the function of adjusting rail gauge and electrically insulating rail rail and concrete tie or sleeper.

The rail insulators are made of nylon 6 or Nylon 66 with glass filler content 20% to 35%, with high performance on usage life and mechanical purpose.

Below are the characteristics of rail insulator:

Technical Parameter	Unit	Technical Requirement	Value
Density	g/cm	1.3-1.45	1.45
Tensile Strength	Mpa	≥170	178
Elongation	%	≤4.4	4.0
Bending Strength	Mpa	≥250	290
Impact Strength (No gap)	KJ/m2	≥80	85
Melting Point	ºC	250 - 270	270
Insulation Resistance	Ω	≥1×108	5×108
Glass Fiber Content	%	30-35	35
Hardness	HRR	≥110	118

Material	Reinforced Nylon 66 (PA66)
Technical spec.	Density:1.3-1.45g/cm3 Tensile strength: ≥170Mpa Elongation: ≤4.4% Bending Strength: ≥250Mpa Impact Strength(No gap): ≥80KJ/m2 Melting point:250-270°C Insulation resistance:≥1×108Ω Glass fiber content:30-35% Hardness:≥110HRR
Color	Black, blue, yellow, green or other color

Material

Reinforced Nylon 66 (PA66)

Technical spec.

Density:1.3-1.45g/cm3

Tensile strength: ≥170Mpa

Elongation: ≤4.4%

Bending Strength: ≥250Mpa

Impact Strength(No gap): ≥80KJ/m2

Melting point:250-270°C

Insulation resistance:≥1×108Ω

Glass fiber content:30-35%

Hardness:≥110HRR
